LayoutNode

A container that provides clipping and scrolling for its children. Requires LayoutBox for dimensions.

Basic Usage

local ui = require("tecs2d.ui")
local LayoutNode = ui.LayoutNode
local LayoutBox = ui.LayoutBox

-- Create a scrollable container
local container = world:spawn(
    Transform(50, 50),
    Rectangle(200, 300),
    LayoutBox(Rectangle, nil, 0, 0),  -- Top-left origin
    LayoutNode(0, 0, 200, 600)  -- scrollX, scrollY, contentWidth, contentHeight
)

Fields

Field	Type	Description
scrollX	number	Horizontal scroll offset
scrollY	number	Vertical scroll offset
contentWidth	number	Total content width
contentHeight	number	Total content height

Constructor

LayoutNode(scrollX, scrollY, contentWidth, contentHeight)

All parameters are optional and default to 0.

Requirements

LayoutNode requires a LayoutBox component on the same entity. An error is thrown if LayoutBox is missing:

-- This works
world:spawn(
    Transform(0, 0),
    Rectangle(200, 300),
    LayoutBox(Rectangle),
    LayoutNode(0, 0, 200, 600)
)

-- This throws an error
world:spawn(
    Transform(0, 0),
    LayoutNode(0, 0, 200, 600)  -- Error: LayoutNode requires LayoutBox
)

Scrolling

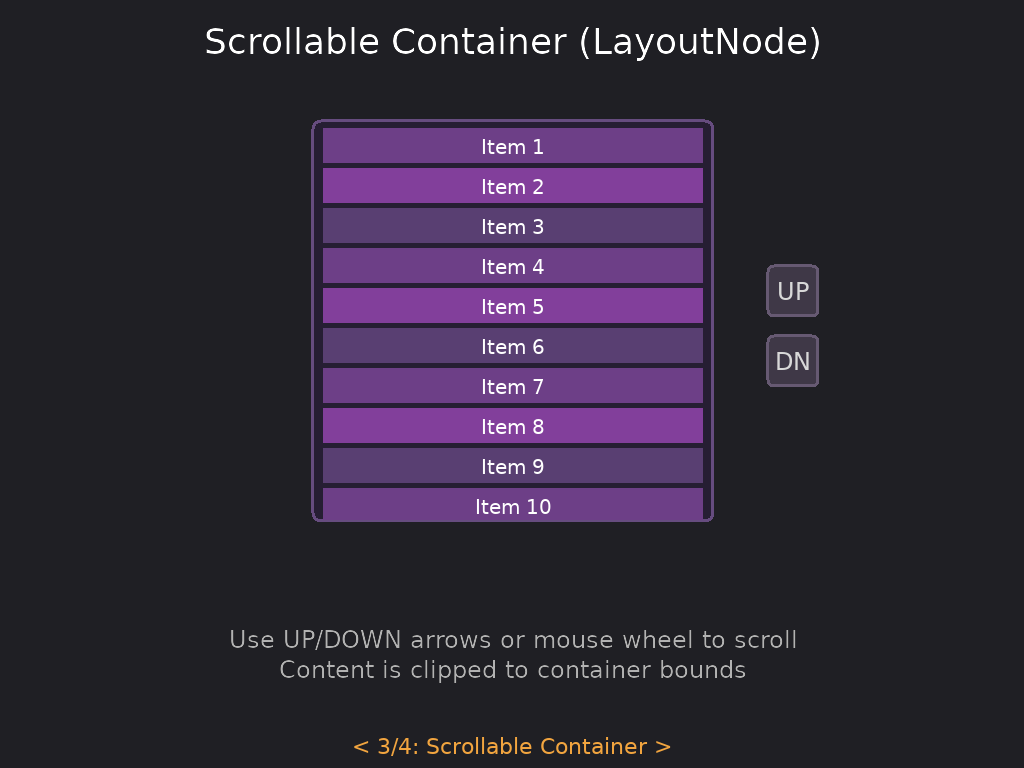

Children of a LayoutNode are clipped to its bounds and offset by the scroll values:

See the tecs-ui example.

-- Update scroll position
local layoutNode = world:get(containerId, LayoutNode)
layoutNode.scrollY = layoutNode.scrollY + 10  -- Scroll down 10 pixels

-- Clamp to valid range
local layoutBox = world:get(containerId, LayoutBox)
local maxScroll = math.max(0, layoutNode.contentHeight - layoutBox.height)
layoutNode.scrollY = math.max(0, math.min(layoutNode.scrollY, maxScroll))
