Views#

A view draws into a rectangle of the frame. Spawn tecs.gfx.View to replace the synthesized full-frame view with explicit cameras:

world:spawn(tecs.gfx.View({
    camera2D = tecs.gfx.newCamera2D({x = 320, y = 180}),
    x = 0, y = 0, width = 0.5, height = 1,
}))
world:spawn(tecs.gfx.View({
    camera2D = tecs.gfx.newCamera2D({x = 960, y = 180}),
    x = 0.5, y = 0, width = 0.5, height = 1,
    order = 1,
}))

Viewport coordinates are fractions of the frame. Views draw in ascending order; equal orders use entity ID. Disable a view with enabled = false. Having explicit but disabled views draws only the background. Removing all view entities returns to the active camera's full-frame view.

Each view runs the render graph at its own resolution and keeps its own resident instances, tile chunks and targets. Moving a camera reculls its retained scene. It does not upload unchanged world geometry. Screen-space content is projected relative to that viewport. Screenshots capture the final composed frame.

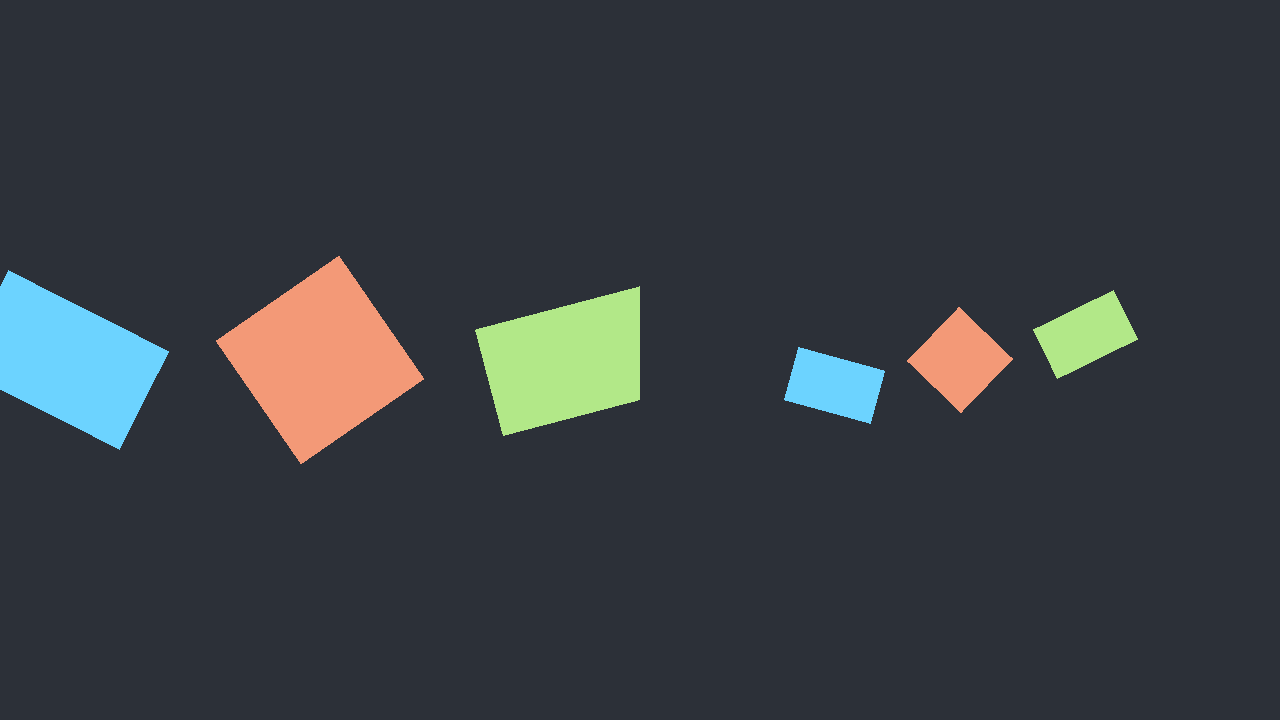

Run nupp task ex-views to see two cameras with different zoom and rotation.
